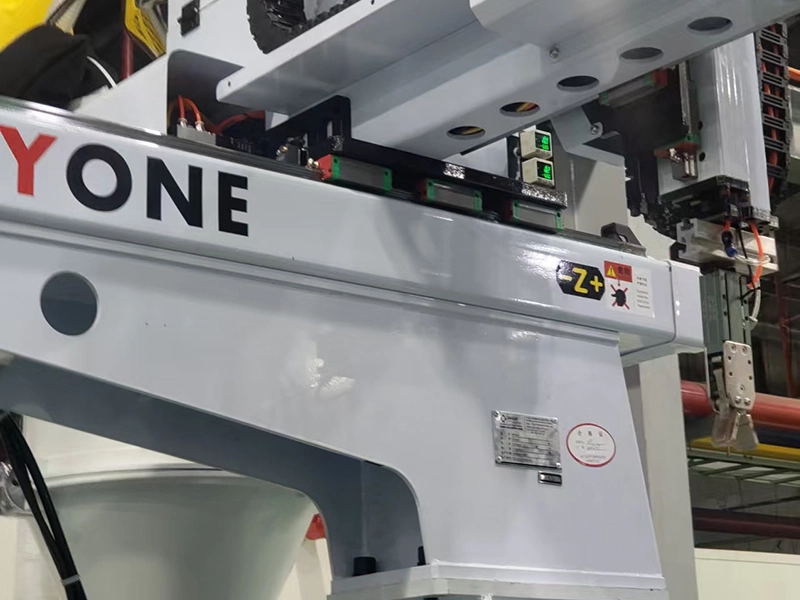

KN1000S5B 5 AXIS AC SERVO ROBOT
KEYONE, a subsidiary of SAIGER, specializes in designing and manufacturing mechanical arms specifically for injection molding machines. With extensive experience and professional expertise, we are capable of independently designing and manufacturing professional-grade mechanical arms that enhance the production efficiency of injection molding machines.
5.0
Size:
2100x1580x1650 MM
Place of Origin:
China
Minimum order quantity:
1
Color:
White
Delivery time:
30 days
Model:
KN1000S5B
Transaction mode:
T/T
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product advantages
● KNS5series manipulator is driven by High-Performance AC servo motor for each axis,which has the advantages of high speed,high precision,more durability, convenient access to manipulator information and data, and easy to realize automation and informatization.
● The take-out shafthas two forms:single section and double section. The double section type is more suitable for high-speed take-out and limitedplant height.
● Through the end expansion and the installation of servo rotating shaft, more complex embedding,assembly and stacking can be realized.
● The drawing shaft is driven by gear rack structure,which has simple structure and faster response.
Product details
C-1 (3)
C-2 (3)
C-3 (3)
C-4 (3)
C-5 (2)
C-6
C-7
C-8
C-9
| MODEL(single-stage) | 1.M.M. range (T) | Traverse stroke (mm) | Crosswise stroke (mm) | Vertical stroke (mm) | Max load (KG) | Minimun takeout time (Sec) | Air consumption (nl/cycle) | Working air pressure (Kgf/cm) | Power |
| KN800S5A | 100-280 | 1250 |
Host: 500 Vice: 500 |
800 | 5 | 1.5 | 1.5 | 5-7 | AC220V (±10%) 50/60HZ |
| KN1000S5A | 100-280 | 1350 | Host: 600 Vice: 600 | 1000 | 5 | 1.5 | 1.5 | 5-7 | AC220V (±10%) 50/60HZ |
| MODEL(Two-section) | 1.M.M. range (T) | Traverse stroke (mm) | Crosswise stroke (mm) | Vertical stroke (mm) | Max load (KG) | Minimun takeout time (Sec) | Air consumption (nl/cycle) | Working air pressure (Kgf/cm) | Power |
| KN800S5B | 100-280 | 1250 | Host: 500 Vice: 500 | 800 | 5 | 1.5 | 1.5 | 5-7 | AC220V (±10%) 50/60HZ |
| KN1000S5B | 200-380 | 1350 | Host: 600 Vice: 600 | 1000 | 5 | 1.5 | 1.5 | 5-7 | AC220V (±10%) 50/60HZ |
| KN1200S5B | 320-470 | 1700 | Host: 800 Vice: 800 | 1200 | 5 | 1.5 | 1.7 | 5-7 | AC220V (±10%) 50/60HZ |
B-2 (7)
| MODEL（single-stage） | A | B | C |
| KN800S5A | 1900MM | 1100MM | 1700MM |
| KN1000S5A | 2100MM | 1580MM | 1850MM |
| MODEL（Two-section） | A | B | C |
| KN800S5B | 1900MM | 1100MM | 1450MM |
| KN1000S5B | 2100MM | 1580MM | 1650MM |
| KN1200S5B | 2400MM | 1780MM | 1800MM |
FAQ
1
Are you trading company or manufacturer?
We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
2
How long is your delivery time?
5 - 20 days after order confirmed. Based on the item and quantity.
3
What's the MOQ?
1 set.
4
What is your terms of payment?
If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
5
Where's your general loading port?
Ningbo port and Shanghai Port.
6
Can you do OEM?
Yes, we can do OEM.
7
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
8
How to deal with the faulty?
First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year. Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
9
How can get the shipping cost?
You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
