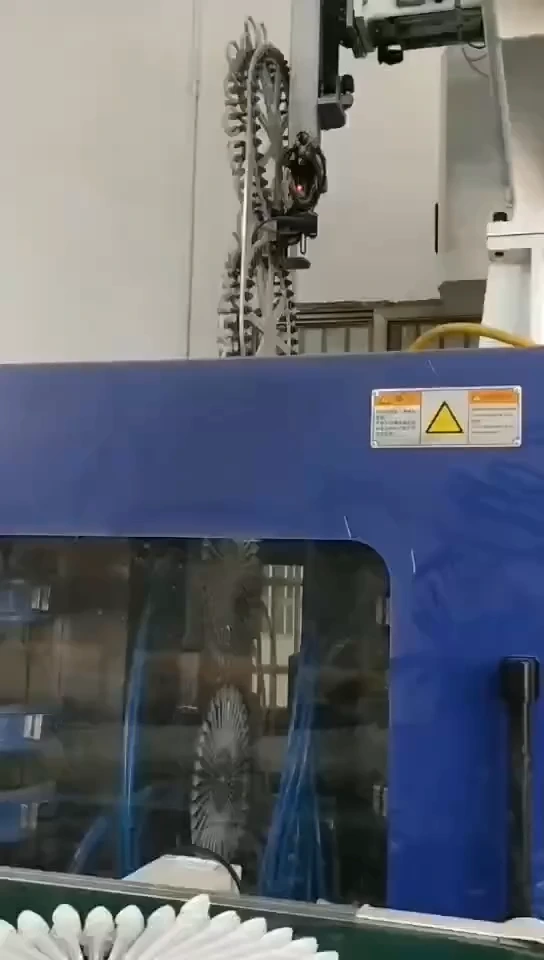

ONGO N series plastic injection molding machine N408

PRODUCT ADVANTAGE : 1.Injection cylinder double rod Special injection piston rod design, the force balance, Can prolong the use time of oil seal oil seal. Significantly reduce the amount of oil back to the high speed of injection, So as to reduce the oil resistance of injection. 2.Injection speed Parallel movement and high–speed/low presure injection movement that shortens circle time,especially for thin wall products. 3.Low low friction design The injection unit used linear guide , to minimize the friction and increase speed during injection 4.New design enhanced template Improved platen with high rigidity structure,especially suit to thin–wall products. 5.Tie bar The tension rod is made of alloy steel and strengthening design , to extend the service life of high speed running condition. 6.Screw&barrel Can be optional infrared thermal insulation device,has the advantages of fast heating, energy saving,long life and other advantages, to further enhance the plasticization quality. With CANbus EtherCAT bus communication, the computer system is full digital controlled.The temperature control adopts special control module. The accuracy can achieve 1 degree.With the power monitoring function, it can monitor the current energy consumption during the production. The electric storage adopts the high-end direct-drive structure,which has low maintenance cost, durability, high storage accuracy and can save 15% - 25% electricity. Standard water-oil separator is equipped to reduce gas valve jamming and improve injection quality. Controlled by the proportional direction valve, the movement can accelerate quickly.During the high speed running, it can operate steadily and precisely control the mold open position. The hydraulic system adopts double servo drive control. It has the advantages of high efficiency, energy saving and low noise.Meanwhile, it can realize mold-open and charge synchronization function. Name: Atypical Snack - Box Material: PP Major Products: Multiple Squares、Non Standard Snack - Box Mold:Two cavities Machine Model: N408 Molding Cycle: About 5.2s
