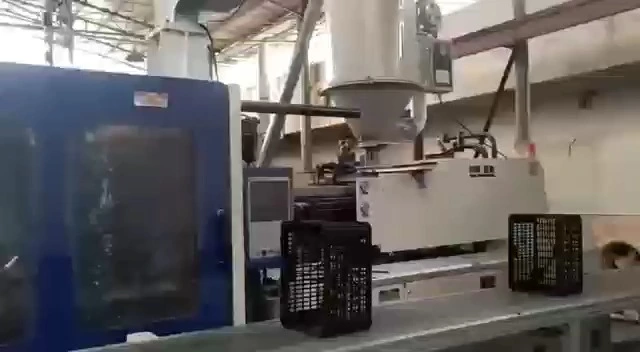

ONGO ZF570JD Fruit Frame Plastic Injection Molding Machine
The ONGO ZF570JD is a horizontal hydraulic injection molding machine with a clamping force of 570 tons, specifically designed for the mass production of thin-walled plastic crates such as fruit and vegetable turnover crates and logistics plastic baskets. With high output, energy saving, and high adaptability as its core advantages, it is the exclusive molding equipment for the mass production of fruit crates in the fruit and vegetable processing, warehousing and logistics industries.
5.0
Size:
9x2.05x2.82 Mc
Place of Origin:
China
Minimum order quantity:
1
Color:
Blue&White
Material Science:
PP,PVC,PET,HDPE,PC,ABS
Delivery time:
30 days
Model:
ZF570JD
Transaction mode:
T/T
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The ONGO ZF570JD is a dedicated injection molding machine for fruit crates, equipped with a high-speed alloy barrel screw for long service life and stable product molding. It features a servo control drive system, achieving 20-50% energy savings compared to conventional models and effectively improving operating efficiency. All mechanical components are reinforced to extend the machine's lifespan, and the mold opening stroke is longer than conventional models, making it suitable for producing deeper fruit crates. An optional mold opening and material storage linkage function further accelerates the molding cycle. It also features power options and material distribution and storage designs, comprehensively adapting to the needs of large-scale fruit crate production.
The precursor of"ONGO" was established in 1992 After more than30 years running.we have formed a professional team with more than 10years developing and manufacturing experience in high-grade plastic injection machine.We adopt modern development technology and scientific management system to build “ONGO" Z series high-grade plastic injection molding machine from 700KN to 30000KN clamping force.
Product drawing
Product details
Fruit Frame Plastic Injection Molding Machine
Fruit Frame Plastic Injection Molding Machine
Platen dimensions
Mould space dimensions
Mould space dimensions
Main features
● Adopt special high - speed alloy barrel screw , with long service life and stable product
● Using servo control drive system can save 20-50% energy than conventional machine
● The mechanical part of the machine is reinforced to extend the service life of the machine
● Larger opening stroke than conventional machine , suitable for deeper fruit frame
● Increase servo system and improve machine efficiency
● Optional opening storage linkage function to speed up the molding cycle
● Power selection and distribution storage
Product Display
5 (4)
4 (5)
3 (6)
2 (7)
9 (4)
11
| ITEM |
ZF570 |
|||
| INJECTION UNIT | A | B | C | |
| Screw Diameter | mm | 90 | 95 | 100 |
| Screw L/D ratio | L/D | 23 | 22 | 21 |
| Shot Volume(theoretical) | cm3 | 2734 | 3046 | 3376 |
| Injection Weight(ps) | g | 2488 | 2772 | 3072 |
| Injection Rate | g/s | 773 | 861 | 954 |
| Injection Pressure | MPa | 173 | 156 | 140 |
| Screw Speed | rpm | 200 | ||
| Injection movement traction (double injection movement) | kN | 141 | ||
| Injection stroke | mm | 430 | ||
| CLAMPING UNIT | ||||
| Clamping Force | kN | 5700 | ||
| Open Stroke | mm | 900 | ||
| Space Between Tie Bars(WxH) | mm | 840*830 | ||
| Max.Mould Height | mm | 880 | ||
| Min.Mould Height | mm | 250 | ||
| Ejector Stroke | mm | 220 | ||
| Ejector Force | kN | 152 | ||
| OTHERS | ||||
| Max.Pump Pressure | MPa | 16 | ||
| Pump Motor Power | kW | 96.4 | ||
| Heating Power | kW | 48.1 | ||
| Machine Dimension(LxWxH) | m | 9*2.05*2.82 | ||
| Oitank Cubage | L | 850 | ||
| Machine Weight | t | 24 | ||
FAQ
1
Are you trading company or manufacturer?
We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
2
How long is your delivery time?
5 - 20 days after order confirmed. Based on the item and quantity.
3
What's the MOQ?
1 set.
4
What is your terms of payment?
If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
5
Where's your general loading port?
Ningbo port and Shanghai Port.
6
Can you do OEM?
Yes, we can do OEM.
7
Do you test all your goods before delivery
Yes, we have 100% test before delivery.
8
How to deal with the faulty?
First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year. Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
9
How can get the shipping cost?
You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
