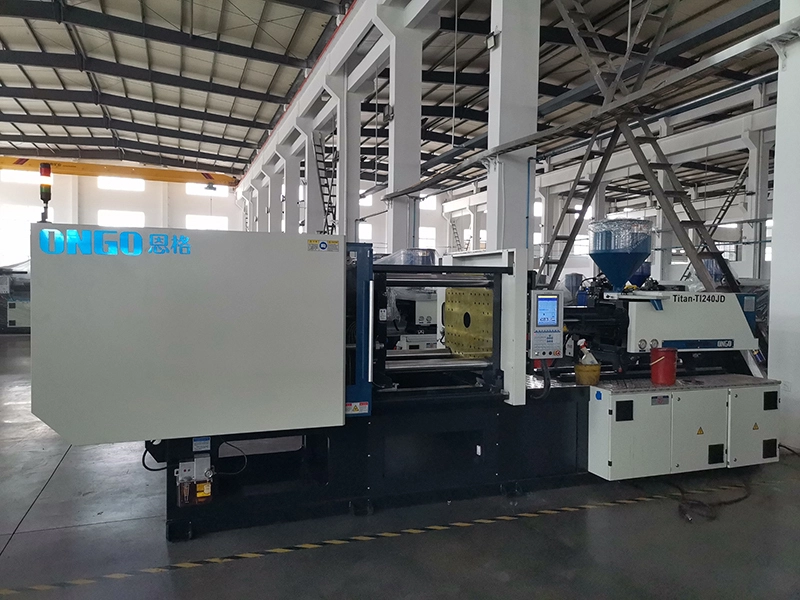

ONGO Titan-TI240JD Plastic Injection Molding Machine
ONGO Titan‑TI240JD plastic injection molding machine provides stable injection and precise clamping control to maintain consistent part quality, while its compact footprint and defined height align with standard production cell layouts to optimize available floor space. Suitable for medium- to high-volume molding of complex thermoplastic components, it shortens cycle times, simplifies mold changeovers and reduces unit cost through improved repeatability and throughput.
5.0
Size:
5.7x1.5x2.1 M
Place of Origin:
China
Minimum order quantity:
1
Color:
Blue&White
Material Science:
PP,PVC,PET,HDPE,PC,ABS
Delivery time:
30 days
Model:
TI240JD
Transaction mode:
T/T
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
More than 20 years experience in this field,ONGO Titan-TI240JD plastic injection molding machine can serve you perfect performance and stability.Fast response hydraulic system,sensitive controller system,and the best optimized mechanical system,highly improved machine's cycle time.Maintenance free lubrication material used on adjustment system.linear guide rail for injection system,Thin oil lubrication for movable platen,ensure a clean production environment for you.All of hydraulic and electric parts adopt world top brands,the whole mechanical system's rigidity is much higher than Chinese normal IMM,the key mechanical parts'suppliers same as world first-class IMM brands.
Precision and energy saving servo system with optimized designed hydraulic circuit,the energy saving capacity is near with full electric machine.you can always come back for seconds,tharls to Ti modulai design,upgrades and retrofits are a piece o'cake. Our quality control is not limited to the quality of a single spare part.During the installation process,we will simulate the actual operation of the machine to detect the matching accuracy between parts.Successfull obtained CE certification to further ensure the reliability of ONGO machines.
Product drawing
ONGO Titan-TI240JD plastic injection molding machine
Platen dimensions
Mould space dimensions
Customer pain points
Industry experience
There are an increasing number of small-batch orders with multiple specifications, and the existing models with the same tonnage parameters are not large enough.
Market area
Labor costs are escalating, and the machine design lacks user-friendliness. (Maintenance is inconvenient, leading to prolonged maintenance times).
Team introduction
The scalability of the existing machines is poor, making it impossible to meet the requirements ofproducing multiple varieties (for example, it is impossible to simultaneously meet the requirements of both large and particularly small gram weights).
Introduction to TI's second-generation machine
● The design philosophy of TI's second-generation machine is to adopt a large-platform approach.
● That is, utilizing generalized and modular technical means for construction.
● TI's overall positioning: multifunctional, multi-purpose, and scalable
● The desired goals are: ease of use, ease of repair, and ease of manufacturing
Introduction to TI transmitter section
Introduction to the shooting range:
● The shooting platform can rotate, and the screw is easy to replace (useful)
● The split-type shooting platform boasts high strength and small overturning moment,
facilitating both size matching and modularization (with options for A-small screw and D- large screw). It is multifunctional and scalable
● Linear guide rail, low friction, more precise injection and back pressure
● The reinforced piston rod facilitates the integration of high-rate-of-fire systems
● The screw half-ring has undergone comprehensive optimization to completely eliminate the phenomenon of bolt breakage
● The injection piston oil seal comes standard with a Gleason ring, which is more durable, has less friction, and ensures more precise injection pressure maintenance and switching.
Product Display
TI150JD
TI180JD-01
TI180JD-02
TI240
TI280
TI320JD
| ITEM | Ti240 | |||
| INJECTION UNIT | A | B | C | |
| Screw diameter | mm | 45 | 50 | 55 |
| Shotvolme(theoretical) | cm³ | 342 | 422 | 511 |
| Injection weith(PS) | g | 311 | 384 | 465 |
| Injection rate | g/s | 177 | 218 | 264 |
| Injection pressure | Mpa | 211 | 171 | 142 |
| Screw speed | rpm | 0-180 | ||
| CLAMPING UNIT | ||||
| Clamping force | kN | 2400 | ||
| Open stroke | mm | 500 | ||
| Space between tie bars(W×H) | mm | 580X530 | ||
| MAX.Mould height | mm | 590 | ||
| MIN.Mould height | mm | 200 | ||
| Ejector stroke | mm | 140 | ||
| Ejector force | kN | 71 | ||
| OTHERS | ||||
| Pump motorpower(servo) | kW | 25 | ||
| Heating power | kW | 17.0 | ||
| Heachine dimension(L×W×H) | m | 5.7X1.5X2.1 | ||
| Oiltank cubage | L | 230 | ||
| Machine weight | t | 7.0 | ||
FAQ
1
Are you trading company or manufacturer?
We are factory which has over 15 years'manufacturing experience and 80% engineer work have more than 10 years.
2
How long is your delivery time?
5 - 20 days after order confirmed. Based on the item and quantity.
3
What's the MOQ?
1 set.
4
What is your terms of payment?
If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
5
Where's your general loading port?
Ningbo port and Shanghai Port.
6
Can you do OEM?
Yes, we can do OEM.
7
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
8
How to deal with the faulty?
First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year. Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
9
How can get the shipping cost?
You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
