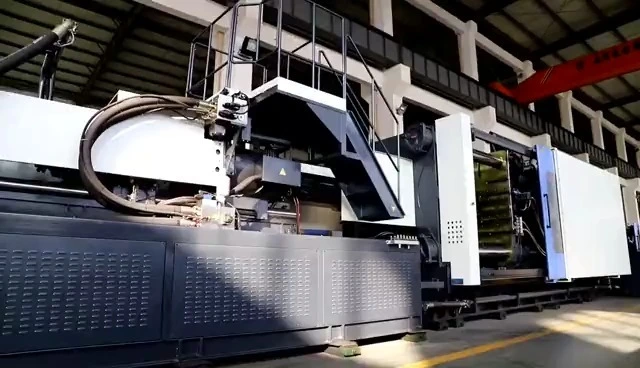

ONGO Z1300JD Standard Plastic Injection Molding Machine
The ONGO Z1300JD is a horizontal hydraulic standard injection molding machine with high clamping force, featuring stable and efficient mass production capabilities. It is suitable for the large-scale processing needs of medium and large-sized plastic products and is a core piece of equipment for industrial-grade plastic molding.
5.0
Size:
13.1x2.92x3.16 M
Place of Origin:
China
Minimum order quantity:
1
Color:
Blue&White
Material Science:
PP,PVC,PET,HDPE,PC,ABS
Delivery time:
30 days
Model:
Z1300JD
Transaction mode:
T/T
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The precursor of"ONGO" was established in 1992 After more than30 years running.we have formed a professional team with more than 10years developing and manufacturing experience in high-grade plastic injection machine.We adopt modern development technology and scientific management system to build “ONGO" Z series high-grade ONGO Z1300JD Standard plastic injection molding machine from 700KN to 30000KN clamping force.
The company is situated in Ningbo Industrial Electomechanical Park,covers an area of more than 60000 square meters with an annual output of some 3000sets
"The profession guarantees quality, the technology creates future".Depending on up-ta-date technology,strong productivity.scientific management and customer-oriented concept,the company has been one of the most active enterprises in plastic machine industry in China!
Product drawing
ONGO Z1300JD
High-grade Plastic Injection Molding Machine
High-grade Plastic Injection Molding Machine
Platen dimensions
Mould space dimensions
QUALITY INMANUFACTURING
Under the control of IS09001 management system, from material selection to processing, production and assembling, each step is inspected strictly.In order to reach100% eligible rate, the machine shall be given more than 72h-continuoustest in performance reliability.
LINKING CONNECTING ROD
Linkage structure of front connecting rod increases connecting rod's strength greatly, as well as the whole clamping unit's rigidity and accuracy.
SPECIAL CUSTOMIZED AND OPTIMIZED CONTROL SYSTEM
According to our more than ten years professional experience and control system supplier's technique, we develop specialized and customized control program to improve machine's over all performance.
ENHANCED STATIONARY PLATEN
The central hole part of the stationary platen is significant in supporting function.Our self owned patent of the reinforcing rib supports mold center effectively, favors moulding quality and stability.
PLATEN CENTER IS THICK ENOUGH
The enough thickness of platen clamping part ensures that the mold is clamped and supported effectively. Entire strength cooperation in unsupported part gives mold over–all balance and stability, reduces platen deformation,improves moulding quality, protects mold, and extends mold's service life. Some traditional old-type structure is weak in the platen center for mold supporting. Instead of that, it applies rein forcing rib structure in unsupported platen edge. So the platen looks thick and makes a reliable illusion, but the actual effect is not so good.
Product Display
TI150JD
3 (5)
4 (4)
5 (3)
6 (5)
7 (4)
| ITEM |
|
Z1300 |
|||
|
INJECTION UNIT |
|
A |
B |
C |
D |
|
Screw Diameter |
mm |
110 |
120 |
130 |
140 |
|
Shot Volume(theoretical) |
cm3 |
5702 |
6899 |
8348 |
9236 |
|
Injection Weight(ps) |
g |
5189 |
6278 |
7597 |
8405 |
|
Injection Rate |
g/s |
789 |
966 |
1169 |
1293 |
|
Injection Pressure |
MPa |
204 |
171 |
146 |
126 |
|
Screw Speed |
rpm |
100 |
|||
| CLAMPING UNIT | |||||
|
Clamping Force |
kN |
13000 |
|||
|
Open Stroke |
mm |
1420 |
|||
|
Space Between Tie Bars(WxH) |
mm |
1280x1280 |
|||
|
Max.Mould Height |
mm |
1400 |
|||
|
Min.Mould Height |
mm |
600 |
|||
|
Ejector Stroke |
mm |
325 |
|||
|
Ejector Force |
kN |
245 |
|||
| OTHERS | |||||
|
Max.Pump Pressure |
MPa |
16 |
|||
|
Pump Motor Power |
kW |
55+55 |
|||
|
Heating Power |
kW |
66 |
|||
|
Machine Dimension(LxWxH) |
m |
12.6x2.66x3.3 |
|||
|
Oitank Cubage |
L |
2100 |
|||
|
Machine Weight |
t |
60 |
|||
FAQ
1
Are you trading company or manufacturer?
We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
2
How long is your delivery time?
5 - 20 days after order confirmed. Based on the item and quantity.
3
What's the MOQ?
1 set.
4
What is your terms of payment?
If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
5
Where's your general loading port?
Ningbo port and Shanghai Port.
6
Can you do OEM?
Yes, we can do OEM.
7
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
8
How to deal with the faulty?
First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year. Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
Q9: How can get the shipping cost?
9
How can get the shipping cost?
You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
