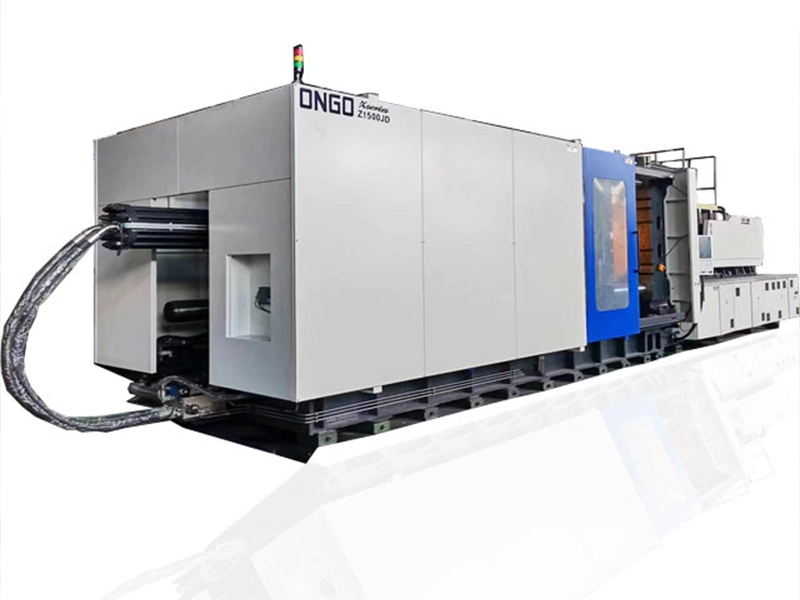

ONGO Z1800JD Standard Plastic Injection Molding Machine
Product Introduction
The ONGO Z1800JD is a horizontal hydraulic standard plastic injection molding machine. Its core advantages include an ultra-high rigidity body, ultra-large mold capacity, servo-driven high efficiency and energy saving, and precise and stable mass production. It is designed for the standardized and large-scale processing of ultra-large and heavy-duty plastic products. It is the core equipment for molding ultra-large plastic parts in high-end fields such as automobile manufacturing, large home appliances, logistics warehousing, and heavy industry. It is compatible with PP, PE, ABS, PC, POM and various modified engineering plastics. It can efficiently complete the one-piece molding of ultra-large structural parts and container plastic parts, and adapt to the high-end mass production needs of multiple industries.
Product drawing
High-grade Plastic Injection Molding Machine
QUALITY INMANUFACTURING
Under the control of IS09001 management system, from material selection to processing, production and assembling, each step is inspected strictly.In order to reach100% eligible rate, the machine shall be given more than 72h-continuoustest in performance reliability.
LINKING CONNECTING ROD
Linkage structure of front connecting rod increases connecting rod's strength greatly, as well as the whole clamping unit's rigidity and accuracy.
SPECIAL CUSTOMIZED AND OPTIMIZED CONTROL SYSTEM
According to our more than ten years professional experience and control system supplier's technique, we develop specialized and customized control program to improve machine's over all performance.
ENHANCED STATIONARY PLATEN
The central hole part of the stationary platen is significant in supporting function.Our self owned patent of the reinforcing rib supports mold center effectively, favors moulding quality and stability.
PLATEN CENTER IS THICK ENOUGH
The enough thickness of platen clamping part ensures that the mold is clamped and supported effectively. Entire strength cooperation in unsupported part gives mold over–all balance and stability, reduces platen deformation,improves moulding quality, protects mold, and extends mold's service life. Some traditional old-type structure is weak in the platen center for mold supporting. Instead of that, it applies rein forcing rib structure in unsupported platen edge. So the platen looks thick and makes a reliable illusion, but the actual effect is not so good.
Product parameters
| ITEM | Z1800 | ||||
| INJECTION UNIT | A | B | C | D | |
| Screw Diameter | mm | 130 | 140 | 150 | 160 |
| Shot Volume(theoretical) | cm³ | 8760 | 10155 | 11660 | 13670 |
| Injection Weight(ps) | g | 7971 | 9240 | 10600 | 12440 |
| Injection Rate | g/s | 1172 | 1360 | 1560 | 1776 |
| Injection Pressure | MPa | 184 | 159 | 138 | 122 |
| Screw Speed | rpm | 70 | |||
| CLAMPING UNIT | |||||
| Clamping Force | kN | 18000 | |||
| Open Stroke | mm | 1600 | |||
| Space Between Tie Bars(WxH) | mm | 1580x1480 | |||
| Max.Mould Height | mm | 1600 | |||
| Min.Mould Height | mm | 650 | |||
| Ejector Stroke | mm | 400 | |||
| Ejector Force | kN | 407 | |||
| OTHERS | |||||
| Max.Pump Pressure | MPa | 16 | |||
| Pump Motor Power | kW | 45+45+45 | |||
| Heating Power | kW | 110.7 | |||
| Machine Dimension(LxWxH) | m | 16.35x3.157x4.17 | |||
| Oitank Cubage | L | 3000 | |||
| Machine Weight | t | 120 | |||
