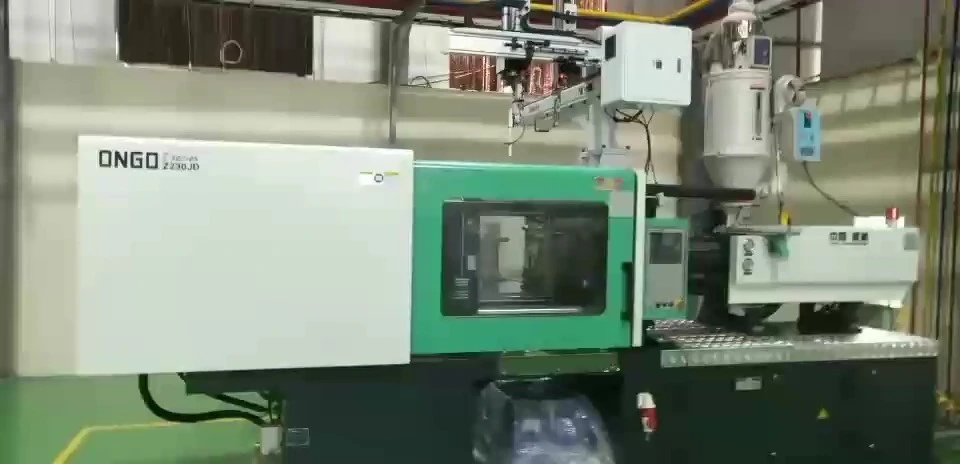

ONGO ZX230JD Standard Plastic Injection Molding Machine

Product Introduction

The ONGO ZX230JD features a multi-specification wear-resistant alloy barrel screw with excellent plasticizing capabilities, enabling rapid and uniform plasticizing of molten material. It is suitable for molding processes using different raw materials and significantly extends the service life of vulnerable parts. It comes standard with a high-performance electro-hydraulic servo hydraulic system, which uses precise closed-loop control of pressure and flow. Compared to traditional fixed-displacement pump models, it significantly reduces energy consumption and greatly improves the response speed and precision of injection and mold closing. This effectively controls product dimensional tolerances, reduces molding defects such as flash and short runs, and ensures the consistency of mass-produced products.

The precursor of"ONGO" was established in 1992 After more than30 years running.we have formed a professional team with more than 10years developing and manufacturing experience in high-grade plastic injection machine.We adopt modern development technology and scientific management system to build “ONGO" Z series high-grade plastic injection molding machine from 700KN to 30000KN clamping force.

The company is situated in Ningbo Industrial Electomechanical Park,covers an area of more than 60000 square meters with an annual output of some 3000sets.

Product drawing

QUALITY INMANUFACTURING

Under the control of  IS09001 management system, from material selection to processing, production and assembling, each step is inspected strictly.In order to reach100% eligible rate, the machine shall be given more than 72h-continuoustest in performance reliability.

LINKING CONNECTING ROD

Linkage structure of front connecting rod increases connecting rod's strength greatly, as well as the whole clamping unit's rigidity and accuracy.

SPECIAL CUSTOMIZED AND OPTIMIZED CONTROL SYSTEM

According to our more than ten years professional experience and control system supplier's technique, we develop specialized and customized control program to improve machine's over all performance.

ENHANCED STATIONARY PLATEN

The central hole part of the stationary platen is significant in supporting function.Our self owned patent of the reinforcing rib supports mold center effectively, favors moulding quality and stability.

PLATEN CENTER IS THICK ENOUGH

The enough thickness of platen clamping part ensures that the mold is clamped and supported effectively. Entire strength cooperation in unsupported part gives mold over–all balance and stability, reduces platen deformation,improves moulding quality, protects mold, and extends mold's service life. Some traditional old-type structure is weak in the platen center for mold supporting. Instead of that, it applies rein forcing rib structure in unsupported platen edge. So the platen looks thick and makes a reliable illusion, but the actual effect is not so good.
