SCM-10A Air-cooled ENVIRONMENTAL PROTECTION WATER COOLED CHILLER
Ningbo Jiuye plastic auxiliary equipment to focus on the development,manufacture,sales and service.The needs of our customers,based on the products design and manufacture of hard efforts.A copy of the Diao tireless efforts and dedication,the combination of a SAIGER products our plastic auxiliary condensate:hopper dryer,industrial chillers,plastic crusher,vacuum automatic feeder,mold temperature control unit,high-quality plastic honeycomb dehumidifier auxiliary machinery and equipment by the use of customers!
5.0
Size:
1400x750x1550 MM
Place of Origin:
China
Minimum order quantity:
1
Color:
White
Delivery time:
30 days
Model:
SCM-10A
Transaction mode:
T/T
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
features
● The standard configuration
The cooling temperature range7~25℃

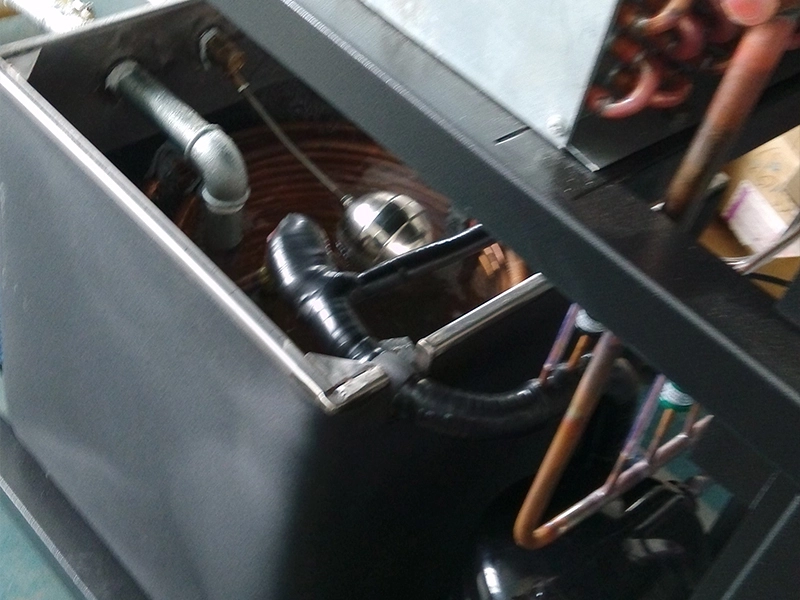

Stainless steel temperature-holder water box
Anti-icing protective device
Refrigeration system using high and low pressure controller
Compressor and pump both have overload protection
Using original Italian high precision thermostat,display precision to±0.1℃
Low pressure pump is standard
Using brand compressor,low noise,high efficiency,long service lite
Using fin condenser,good heat transfer effect,fast heat dissipation,do not need to provide cooling water
● Unit of choose and buy
Optional medium pressure or high pressure pump to meet the needs of different water pressure
Optional water tank level mirror,observe whether the water tank is in the normal range
Optional to increase the hot air bypass valve,temperature control accuracy of up to±0.1℃
Optional to increase the electrical bypass valve,shut down immediately of the supply of refrigerant after shutdown machine,effective to prevent the evaporator from freezing after shutdown machine
Optional to increase the observe liquid mirror to determine whether the refrigerant filling is appropriate,determine the refrigerant quality and moisture content of high and low
Optional flow switch to check whether the chilled water flow is sufficient
Overview
Our company has many years of research and development,design,construction experience for dehumidification,drying,conveying,measuring and comminuting etc equipments.Jiuye company With professionaltechnical ability in the constantly changing market,to implement very personalized single equipment and high quality solutions in addition of dry feeding system for customers.,The company has a perfect after-sales service system.After sales service staff through the company's internal technical R &D Department of professional and systematic training at any time to provide customers with fast,efficient and flexible service.
Our company for each piece of equipment is carefully designed,carefully manufactured and strict inspection.Cohesion SAIGER brand to promote the plastic auxiliary machinery to the high efficiency,energy saving,environmental protection,and direction.
Application scope
Applied to the mould cooling to reduce product molding cycle,can also be used for cooling equipment to ensure that the equipment under normal,temperature,industrial area of cooling or other needs
B-1 (2)
B-2 (2)
B-3
B-5
B-6
B-8
B-9
| Model | SCM-3W SCM-3A | SCM-5W SCM-5A | SCM-8W SCM-8A | SCM-10W SCM-10A | SCM-12W SCM-12A | SCM-15W SCM-15A | SCM-20W SCM-20A | SCM-25W SCM-25A | SCM-30W SCM-30A | ||
| The rated refrigerating capacity(50Hz) | W Kcal/h | 7900 6800 | 14400 12400 | 22300 19200 | 30300 26100 | 40500 34800 | 43300 37300 | 45000 38700 | 58000 49880 | 70000 60200 | |
| The input power | 3PH～380V 50Hz(220V/15V/440V 50/60Hz) | ||||||||||
| Compressor | Type Power | KW | 2.68 | 4.43 | 7 | 9.06 | Hermeti 10.32 | c scroll 13.4 | 20 | 25 | 30 |
| Flow regulator | adjustable | Expansion valve | |||||||||
| Refrigerant | Type The filling amount | kg | 2.5 | R22(R407C) | Environment friendly R407c | 9x2 | 11×2 | ||||
| 4.5 | 6 | 7.5 | 9 | 11 | 7.5x2 | ||||||
| Condenser | Type Cooling air volume Fan power | m³h | 9000 0.36 | 9000 0.36 | Finned copper tube 9000 11000 11000 13000 0.36 0.5 0.5 0.8 | 18000 1.2 | 18000 1.2 | 24000 1.6 | |||
| Evapor ator | Type the water | tank (L) | 50 | 70 | 140 | 140 | 160 | Shell and Tube 160 200 | |||
| 200 | |||||||||||
| Power | KW | 0.37 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | |
| Water pump | Lift(m) | 25 | 25 | 25 | 20 | 25 | 25 | 30 | 30 | 45 | |
| Flow | 80 | 120 | 120 | 200 | 260 | 260 | 400 | 400 | 300 | ||
| Weight | KG | 210 | 255 | 305 | 350 | 490 | 550 | 700 | 750 | 780 | |
| L | mm | 1350 | 1350 | 1350 | 1400 | 1400 | 1650 | 1900 | 2150 | 2150 | |
| Size | W | mm | 660 | 660 | 700 | 750 | 750 | 830 | 1200 | 1480 | 1480 |
| Dimen sion | H | mm | 1080 | 1280 | 1350 | 1550 | 1550 | 1650 | 1750 | 1800 | 1800 |
B-4
FAQ
1
Are you trading company or manufacturer?
We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
2
How long is your delivery time?
5 - 20 days after order confirmed. Based on the item and quantity.
3
What's the MOQ?
1 set.
4
What is your terms of payment?
If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
5
Where's your general loading port?
Ningbo port and Shanghai Port.
6
Can you do OEM?
Yes, we can do OEM.
7
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
8
How to deal with the faulty?
First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year. Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
9
How can get the shipping cost?
You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
