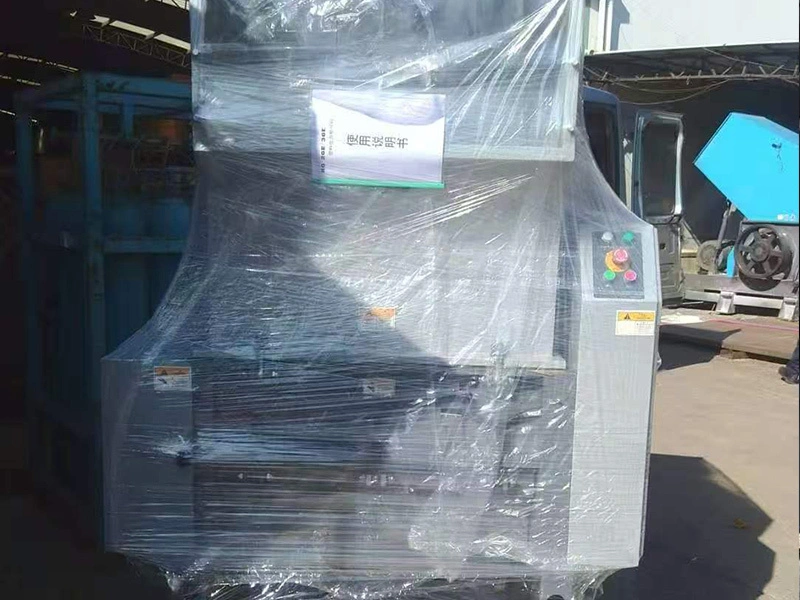

SGM-2680Q SILENT CENTRALIZED PULVERIZER
Ningbo Jiuye plastic auxiliary equipment to focus on the development,manufacture,sales and service.The needs of our customers,based on the products design and manufacture of hard efforts.A copy of the Diao tireless efforts and dedication,the combination of a SAIGER products our plastic auxiliary condensate:hopper dryer,industrial chillers,plastic crusher,vacuum automatic feeder,mold temperature control unit,high-quality plastic honeycomb dehumidifier auxiliary machinery and equipment by the use of customers!
Our company has many years of research and development,design,construction experience for dehumidification,drying,conveying,measuring and comminuting etc equipments.Jiuye company With professional technical ability in the constantly changing market,to implement very personalized single equipment and high quality solutions in addition of dry feeding system for customers.,The company has a perfect after-sales service system.After sales service staff through the company's internal technical R &D Department of professional and systematic training at any time to provide customers with fast,efficient and flexible service.
Our company for each piece of equipment is carefully designed,carefully manufactured and strict inspection.Cohesion SAIGER brand to promote the plastic auxiliary machinery to the high efficiency,energy saving,environmental protection,and direction.
5.0
Size:
1725x1820x2020 M
Place of Origin:
China
Minimum order quantity:
1
Color:
White
Delivery time:
30 days
Model:
SGM-2680Q
Transaction mode:
T/T
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The ONGO ZX230JD features a multi-specification wear-resistant alloy barrel screw with excellent plasticizing capabilities, enabling rapid and uniform plasticizing of molten material. It is suitable for molding processes using different raw materials and significantly extends the service life of vulnerable parts. It comes standard with a high-performance electro-hydraulic servo hydraulic system, which uses precise closed-loop control of pressure and flow. Compared to traditional fixed-displacement pump models, it significantly reduces energy consumption and greatly improves the response speed and precision of injection and mold closing. This effectively controls product dimensional tolerances, reduces molding defects such as flash and short runs, and ensures the consistency of mass-produced products.
The precursor of"ONGO" was established in 1992 After more than30 years running.we have formed a professional team with more than 10years developing and manufacturing experience in high-grade plastic injection machine.We adopt modern development technology and scientific management system to build “ONGO" Z series high-grade plastic injection molding machine from 700KN to 30000KN clamping force.
The company is situated in Ningbo Industrial Electomechanical Park,covers an area of more than 60000 square meters with an annual output of some 3000sets.
Product drawing
Product details
High-grade Plastic Injection Molding Machine
High-grade Plastic Injection Molding Machine
Platen dimensions
Mould space dimensions
QUALITY INMANUFACTURING
Under the control of IS09001 management system, from material selection to processing, production and assembling, each step is inspected strictly.In order to reach100% eligible rate, the machine shall be given more than 72h-continuoustest in performance reliability.
LINKING CONNECTING ROD
Linkage structure of front connecting rod increases connecting rod's strength greatly, as well as the whole clamping unit's rigidity and accuracy.
SPECIAL CUSTOMIZED AND OPTIMIZED CONTROL SYSTEM
According to our more than ten years professional experience and control system supplier's technique, we develop specialized and customized control program to improve machine's over all performance.
ENHANCED STATIONARY PLATEN
The central hole part of the stationary platen is significant in supporting function.Our self owned patent of the reinforcing rib supports mold center effectively, favors moulding quality and stability.
PLATEN CENTER IS THICK ENOUGH
The enough thickness of platen clamping part ensures that the mold is clamped and supported effectively. Entire strength cooperation in unsupported part gives mold over–all balance and stability, reduces platen deformation,improves moulding quality, protects mold, and extends mold's service life. Some traditional old-type structure is weak in the platen center for mold supporting. Instead of that, it applies rein forcing rib structure in unsupported platen edge. So the platen looks thick and makes a reliable illusion, but the actual effect is not so good.
| ITEM | ZX230 | ||||
| INJECTION UNIT | A | B | C | ||
| Screw Diameter | mm | 45 | 50 | 55 | |
| Shot Volume(theoretical) | cm³ | 397 | 491 | 594 | |
| Injection Weight(ps) | g | 362 | 446 | 540 | |
| Injection Rate | g/s | 154 | 190 | 229 | |
| Injection Pressure | MPa | 218 | 176 | 146 | |
| Screw Speed | rpm | 179 | |||
| CLAMPING UNIT | |||||
| Clamping Force | kN | 2300 | |||
| Open Stroke | mm | 475 | |||
| Space Between Tie Bars(WxH) | mm | 520x520 | |||
| Max.Mould Height | mm | 530 | |||
| Min.Mould Height | mm | 200 | |||
| Ejector Stroke | mm | 142 | |||
| Ejector Force | kN | 71 | |||
| OTHERS | |||||
| Max.Pump Pressure | MPa | 17.5 | |||
| Pump Motor Power | kW | 25 | |||
| Heating Power | kW | 14.9 | |||
| Machine Dimension(LxWxH) | m | 5.44x1.50x2.14 | |||
| Oitank Cubage | L | 230 | |||
| Machine Weight | t | 7 | |||
FAQ
1
Are you trading company or manufacturer?
We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
2
How long is your delivery time?
5 - 20 days after order confirmed. Based on the item and quantity.
3
What's the MOQ?
1 set.
4
What is your terms of payment?
If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
5
Where's your general loading port?
Ningbo port and Shanghai Port.
6
Can you do OEM?
Yes, we can do OEM.
7
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
8
How to deal with the faulty?
First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year. Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
9
How can get the shipping cost?
You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
