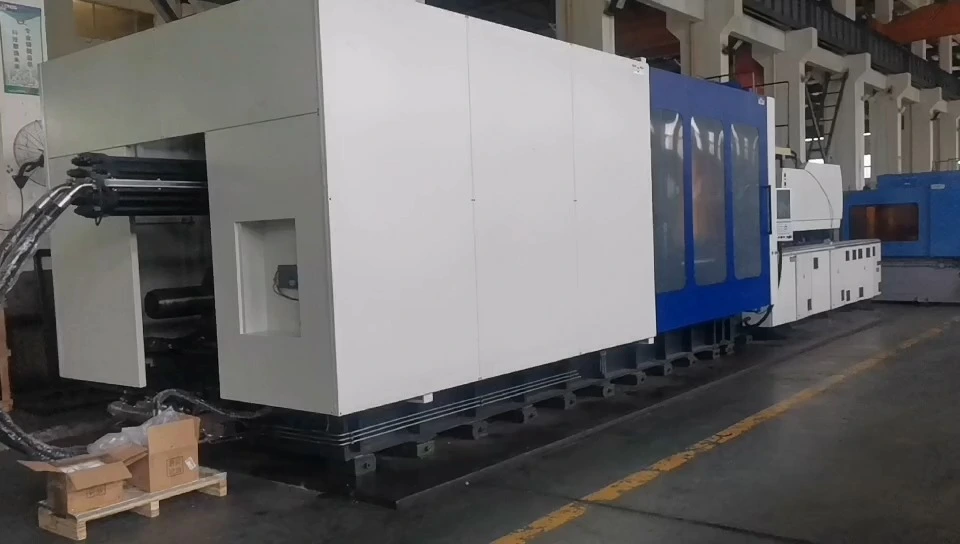

ONGO Z980JD Standard Plastic Injection Molding Machine

Product Introduction

The ONGO Z980JD is a horizontal hydraulic standard injection molding machine with a clamping force of 980 tons. It is designed for the standardized and large-scale processing of large plastic products and is a core piece of equipment for molding large plastic parts in the automotive manufacturing, home appliance, and logistics equipment industries. It adopts a high-rigidity, thickened box-type mold platen and a reinforced articulated arm clamping structure. The high-strength alloy tie rods with a large spacing design ensure uniform stress on the machine body and small mold deformation, which not only extends the mold life but also provides a large mold capacity. It can be adapted to various large plastic molds and supports single-cavity mold (large structural parts) or multi-cavity mold (large auxiliary parts) molding to meet different mass production needs. Key hydraulic and electrical components are selected from well-known brands. With an automatic central lubrication and intelligent hydraulic oil cooling system, it can achieve 24-hour high-intensity continuous mass production with a low failure rate and convenient maintenance.

The precursor of"ONGO" was established in 1992 After more than30 years running.we have formed a professional team with more than 10years developing and manufacturing experience in high-grade plastic injection machine.We adopt modern development technology and scientific management system to build “ONGO" Z series high-grade plastic injection molding machine from 700KN to 30000KN clamping force.

Product drawing

QUALITY INMANUFACTURING

Under the control of  IS09001 management system, from material selection to processing, production and assembling, each step is inspected strictly.In order to reach100% eligible rate, the machine shall be given more than 72h-continuoustest in performance reliability.

LINKING CONNECTING ROD

Linkage structure of front connecting rod increases connecting rod's strength greatly, as well as the whole clamping unit's rigidity and accuracy.

SPECIAL CUSTOMIZED AND OPTIMIZED CONTROL SYSTEM

According to our more than ten years professional experience and control system supplier's technique, we develop specialized and customized control program to improve machine's over all performance.

ENHANCED STATIONARY PLATEN

The central hole part of the stationary platen is significant in supporting function.Our self owned patent of the reinforcing rib supports mold center effectively, favors moulding quality and stability.

PLATEN CENTER IS THICK ENOUGH

The enough thickness of platen clamping part ensures that the mold is clamped and supported effectively. Entire strength cooperation in unsupported part gives mold over–all balance and stability, reduces platen deformation,improves moulding quality, protects mold, and extends mold's service life. Some traditional old-type structure is weak in the platen center for mold supporting. Instead of that, it applies rein forcing rib structure in unsupported platen edge. So the platen looks thick and makes a reliable illusion, but the actual effect is not so good.
