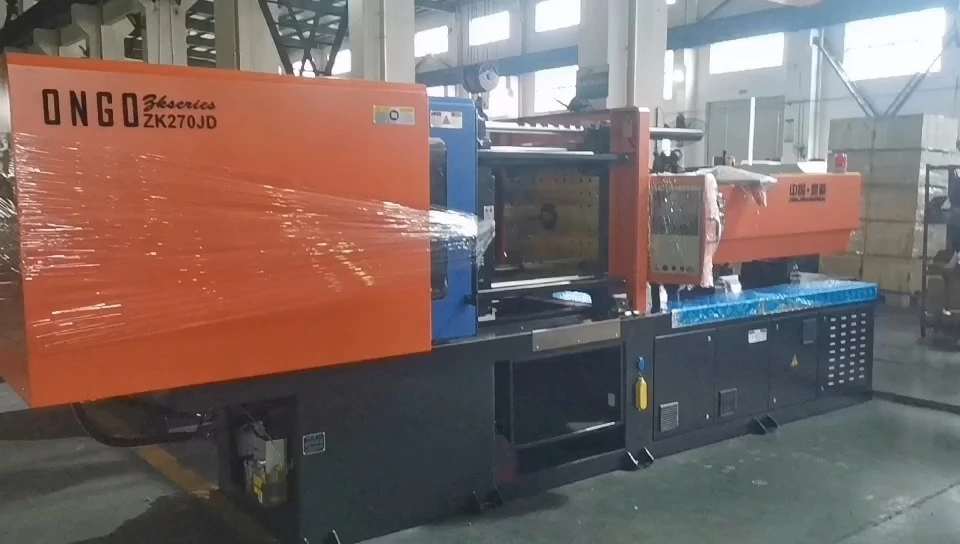

ONGO ZK270JD Knife And Fork Plastic Injection Molding Machine
The ONGO ZK270JD is a knife and fork plastic injection molding machine designed for high-speed, large-scale production of disposable food contact utensils (such as plastic cutlery). It meets food-grade standards and possesses high-speed, precision molding capabilities, making it a professional piece of equipment for the tableware manufacturing industry. This machine is compatible with mainstream food-grade plastics such as PP and can efficiently mold various disposable cutlery, dessert spoons, and other tableware.
5.0
Size:
6.65x1.8x2.35 M
Place of Origin:
China
Minimum order quantity:
1
Color:
Blue&White
Material Science:
PP,PVC,PET,HDPE,PC,ABS
Delivery time:
30 days
Model:
ZK270JD
Transaction mode:
T/T
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The ONGO ZK270JD features comprehensive process optimization specifically for the production characteristics of cutlery and spoons. It is equipped with a food-grade wear-resistant alloy barrel screw and a fully enclosed plasticizing structure, preventing the release of harmful substances and ensuring corrosion and wear resistance. Combined with a ±1℃ high-precision zoned temperature control system, it precisely matches the 180-220℃ plasticizing requirements of PP melt, while preventing flow channel blockage, ensuring food-grade production compliance from the source.
This equipment is widely applicable to the large-scale production of disposable plastic cutlery, spoons, fruit forks, dessert spoons, and other food contact utensils. With its core features of food-grade compliance, high output and low consumption, stable precision, and strong automation adaptability, it significantly reduces production and compliance costs for enterprises, providing tableware manufacturers with an efficient, compliant, and cost-effective professional plastic molding solution.
ONGO persistent advanced injection molding technology is introduced into the market, in close cooperation with customers,we constantly seek solutions in mechanical engineering and forming technology.ONGO speed thin–wall machine series to enhance the design platform, in the short period of rapid prototyping machine for oil spill, mechanical life, etc.problems are significantly improved. And the use of modern processing technology, advanced injection control mode, to ensure that the overall response to high efficiency, high performance stability.ONGO thin–walled high speed machine series of excellent performance, widely used in plastic processing industry, especially for thin–walled products, multi cavity mold, and traditional industries provided effect yield significantly.
Product drawing
Product details: Fork & spoon making Plastic Injection Molding Machine
Platen dimensions
Mould space dimensions
Mould space dimensions
PRODUCT ADVANTAGE
Injection cylinder double rod
Special injection piston rod design, the force balance, Can prolong the use time of oil seal oil seal. Significantly reduce the amount of oil back to the high speed of injection, So as to reduce the oil resistance of injection.
Injection speed
Parallel movement and high–speed/low presure injection movement that shortens circle time,especially for thin wall products.
Low low friction design
The injection unit used linear guide , to minimize the friction and increase speed during injection
New design enhanced template
Improved platen with high rigidity structure,especially suit to thin–wall products.
Tie bar
The tension rod is made of alloy steel and strengthening design , to extend the service life of high speed running condition.
Screw&barrel
Can be optional infrared thermal insulation device,has the advantages of fast heating, energy saving,long life and other advantages, to further enhance the plasticization quality.
With CANbus EtherCAT bus communication, the computer system is full digital controlled.The temperature control adopts special control module. The accuracy can achieve 1 degree.With the power monitoring function, it can monitor the current energy consumption during the production.
The electric storage adopts the high-end direct-drive structure,which has low maintenance cost, durability, high storage accuracy and can save 15% - 25% electricity.
Standard water-oil separator is equipped to reduce gas valve jamming and improve injection quality.
Controlled by the proportional direction valve, the movement can accelerate quickly.During the high speed running, it can operate steadily and precisely control the mold open position.
The hydraulic system adopts double servo drive control. It has the advantages of high efficiency, energy saving and low noise.Meanwhile, it can realize mold-open and charge synchronization function.
Product Display
5 (19)
1 (37)
1 (39)
4 (25)
3 (35)
6 (22)
| ITEM | ZK270 | ||
| INJECTION UNIT | |||
| Injection Unit | A | B | |
| Screw Diameter | mm | 55 | 67 |
| Screw L/D Ratio | L/D | 21 | 17 |
| Shot Volume(theoretical) | cm³ | 641 | 951 |
| Injection Weight(ps) | g | 583 | 866 |
| Injection Speed | mm/s | 146 | |
| Injection Rate | g/s | 315 | 468 |
| Injection Pressure | MPa | 169 | 114 |
| Screw Speed | rpm | 166 | |
| Injection and Displacement force | KN | 84 | |
| Injection stroke | mm | 270 | |
| CLAMPING UNIT | |||
| Clamping Force | kN | 2700 | |
| Open Stroke | mm | 540 | |
| Space Between Tie Bars(WxH) | mm | 565*565 | |
| Max.Mould Height | mm | 510 | |
| Min.Mould Height | mm | 160 | |
| Ejector Stroke | mm | 150 | |
| Ejector Force | kN | 71 | |
| OTHERS | |||
| Max.Pump Pressure | MPa | 16 | |
| Pump Motor Power | kW | 36.7 | |
| Heating Power | kW | 22.9 | |
| Machine Dimension(LxWxH) | m | 6.1*1.6*2.25 | |
| Oitank Cubage | L | 380 | |
| Machine Weight | T | 9 | |
FAQ
1
Are you trading company or manufacturer?
We are factory which has over 15 years'manufacturing experience and 80% engineer work have more than 10 years.
2
How long is your delivery time?
5 - 20 days after order confirmed. Based on the item and quantity.
3
What's the MOQ?
1 set.
4
What is your terms of payment?
If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
5
Where's your general loading port?
Ningbo port and Shanghai Port.
6
Can you do OEM?
Yes, we can do OEM.
7
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
8
How to deal with the faulty?
First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year. Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
9
How can get the shipping cost?
You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
